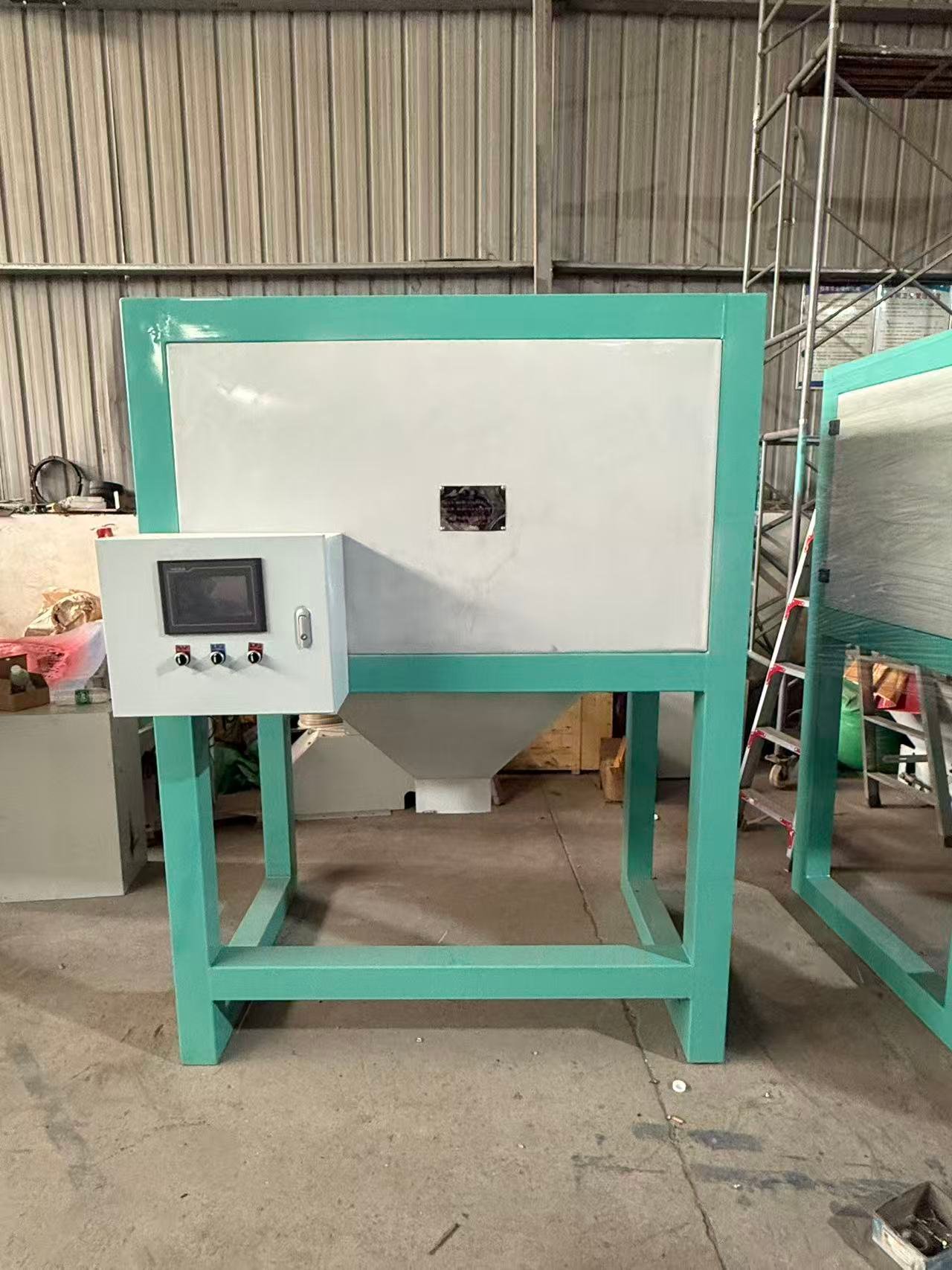

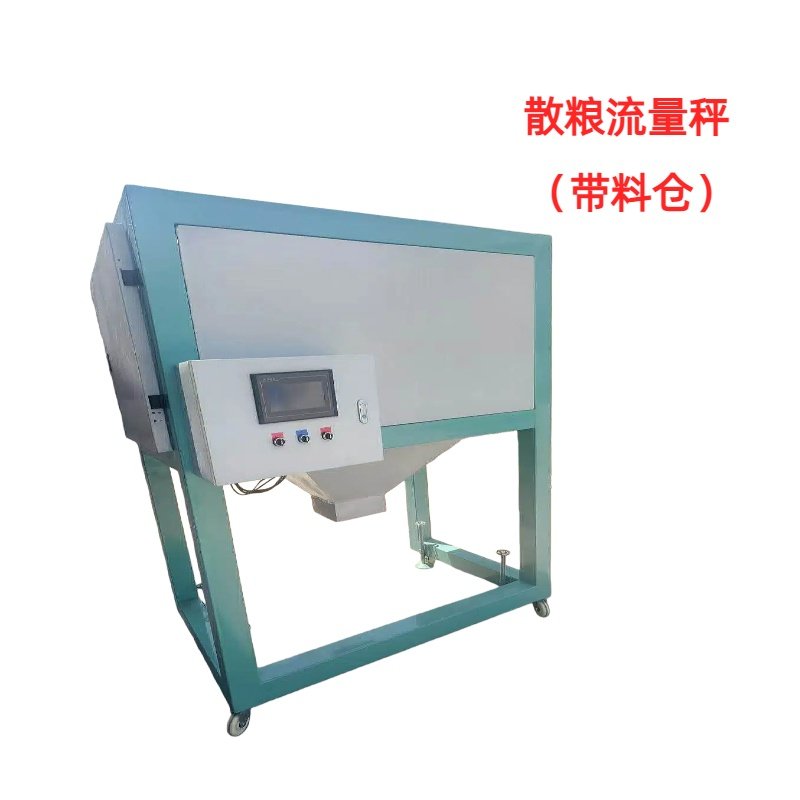

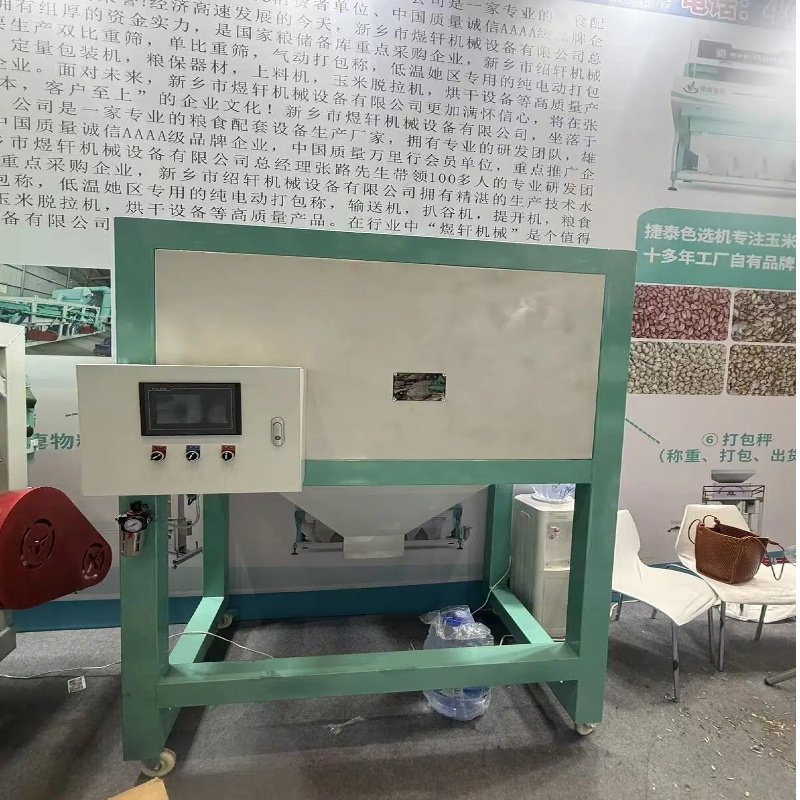

Grain Flow Scale (In-Line Weighing)
Continuous in-line scale that measures the weight of a flowing grain stream — used for intake records, line balancing and stock control without stopping the line.
Overview
A flow scale weighs grain while it is moving. Instead of bagging a sample and multiplying, the scale sits in the conveying line and totals the material passing through, so intake at the depot and output at the mill are both recorded as they happen.
Typical use is purchase weighing at the intake pit, monitoring throughput of a cleaning line, and stock control between silos. Totals are shown on the controller and can be reset per truck, per shift or per batch.
What it is not
It is not a laboratory instrument: accuracy depends on flow stability and calibration with your material. We state the achievable accuracy for your installation in the technical agreement, and calibration weights are supplied with the machine.
Caractéristiques principales
- Continuous weighing of a flowing grain stream
- Batch / shift totaliser with reset
- Fits into new or existing conveying lines
- Calibration weights supplied
- Sealed measuring chamber against dust
- Optional output to plant records system
Avantages
- No interruption to the line
- Records intake in real time
- Simple recalibration
- Works with existing conveyors
Principe de fonctionnement
Grain passes through a measuring chamber; the weighing element totals the flow and the controller accumulates batch, shift and cumulative totals.
Applications typiques
- Depot intake weighing
- Cleaning line throughput monitoring
- Silo stock control
- Purchase settlement records
- Recording intake without stopping trucks
- Monitoring line throughput
- Stock control
Spécifications
| Type | In-line flow scale (continuous weighing) |
|---|---|
| Capacity | Matched to your conveying line — confirmed in the offer |
| Accuracy | Stated for your installation in the technical agreement |
| Totaliser | Batch, shift and cumulative totals |
| Mounting | In-line in chute or conveyor discharge |
| Body / contact material | Carbon steel (standard); stainless steel or food-grade lining available on request |
| Surface finish | Primed and top-coated; contact surfaces deburred and smooth |
| Electrical supply | Configured for the destination country (single or three phase) — stated on the quotation |
| Control | Local control panel; PLC and weighing controller brand confirmed in the offer |
Indiquez le produit et le débit
Envoyez le produit, le débit horaire, la propreté visée et les conditions du site. Nous répondons sur ce qui manque pour un prix réel.
