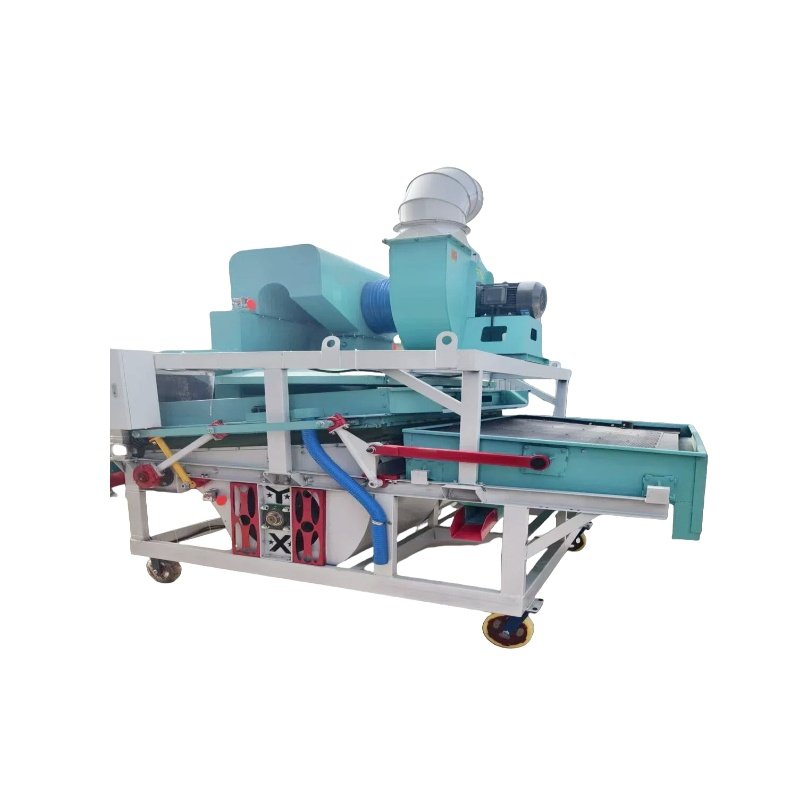

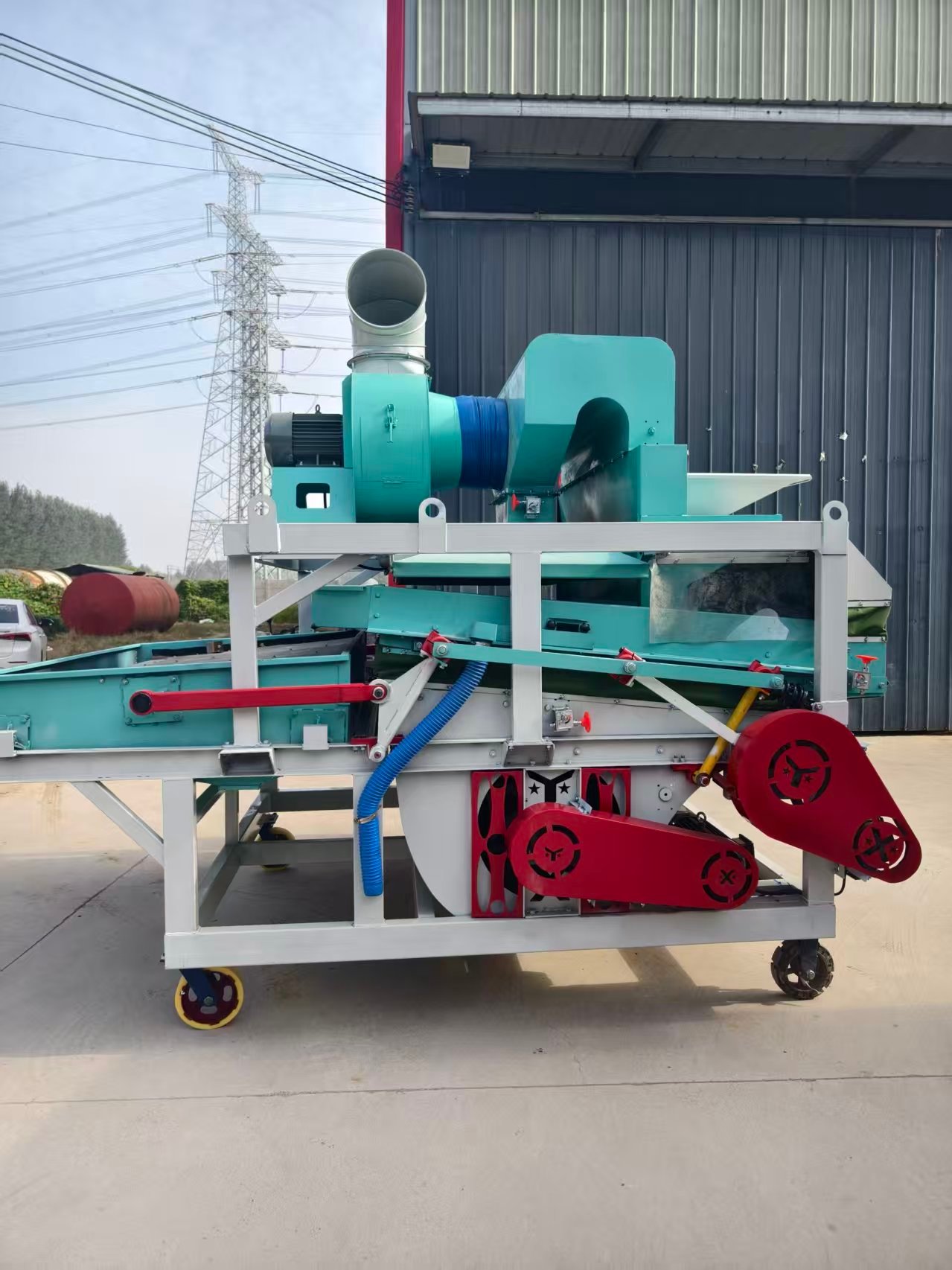

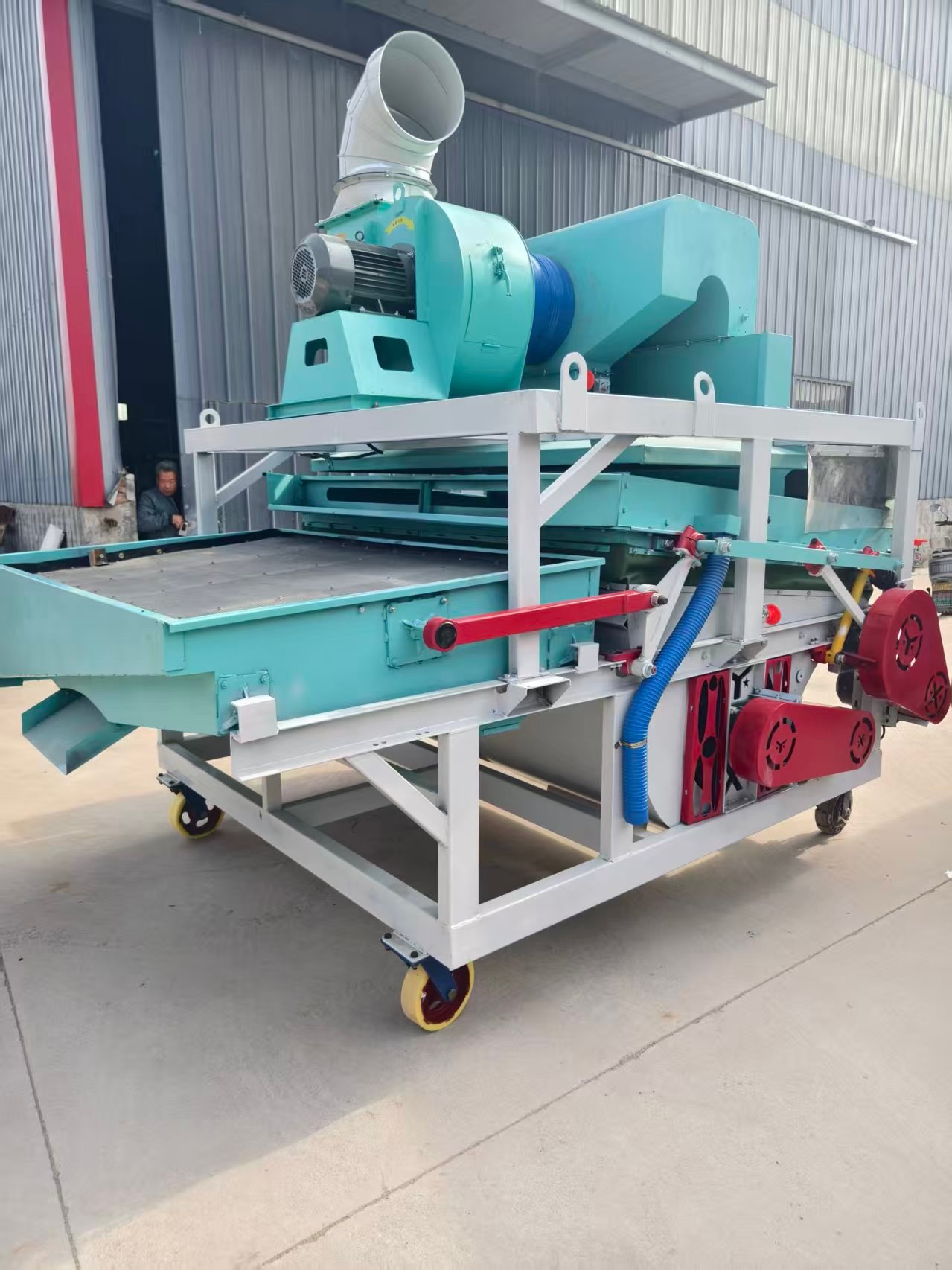

Single-Deck Gravity Separator for Grain & Seed
Compact single-deck gravity separator that removes shrivelled, sprouted and damaged kernels by density — for smaller seed and grain cleaning capacities.
Overview
The single-deck gravity separator does the same job as the double-deck version in one pass: it separates grain by density, lifting light and damaged kernels away from sound grain, and grades the sound fraction by weight.
It is the right choice when throughput is moderate, when floor space or budget is limited, or when the incoming grain is already reasonably clean and one density pass is enough.
Single deck or double deck
Choose single deck for smaller capacities and cleaner incoming grain; choose double deck when the material is heavily contaminated with light kernels, when the cleanliness target is strict (seed production), or when throughput is high. We will tell you honestly which one your material needs.
أهم الخصائص
- Density separation in a single pass
- Adjustable air flow, deck angle and amplitude
- Compact footprint for existing buildings
- Enclosed body with dust outlet
- Handles grain, oilseed and pulse crops
- Standard wear parts
المزايا
- Compact
- Lower cost than double deck
- On-site adjustment per material
- Dust contained
كيف تعمل
Grain travels over a vibrating inclined deck while air is blown through it; light kernels lift to the light outlet, sound grain discharges at the heavy outlet.
الاستخدامات النموذجية
- Small seed plants
- Grain depots
- Cooperatives
- Pulse and oilseed cleaning
- Moderate throughput
- Limited floor space
- One-pass density cleaning
المواصفات
| Decks | One |
|---|---|
| Capacity | Confirmed for your material in the technical agreement |
| Adjustment | Air flow, deck angle, amplitude, feed rate |
| Materials | Wheat, corn, soybean, rice, barley, sorghum, oilseeds, pulses |
| Dust control | Enclosed body with outlet for a dust collector |
| Body / contact material | Carbon steel (standard); stainless steel or food-grade lining available on request |
| Surface finish | Primed and top-coated; contact surfaces deburred and smooth |
| Electrical supply | Configured for the destination country (single or three phase) — stated on the quotation |
| Control | Local control panel; PLC and weighing controller brand confirmed in the offer |
